Report Types

This section gives information about available Powermanager reports.

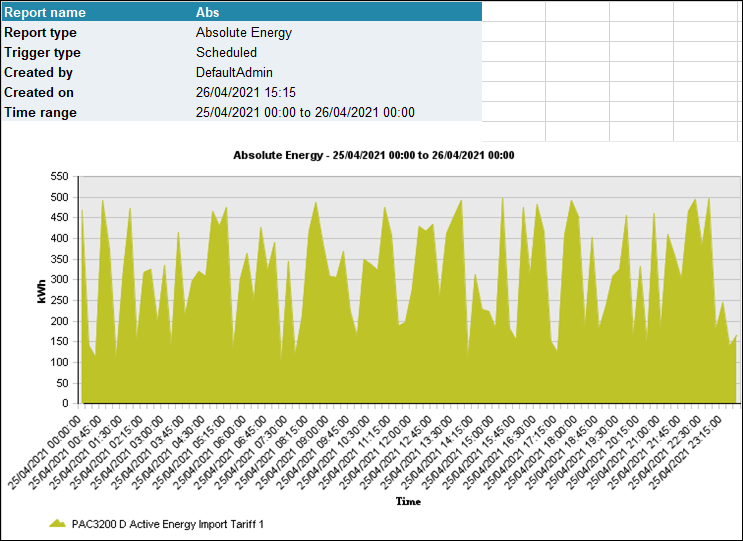

Absolute Energy

This report gives an overview of the absolute energy consumption of the data points for the selected time intervals. It shows the data point which has the most influence on the total energy consumption. The report can be created with a bar chart or an area chart.

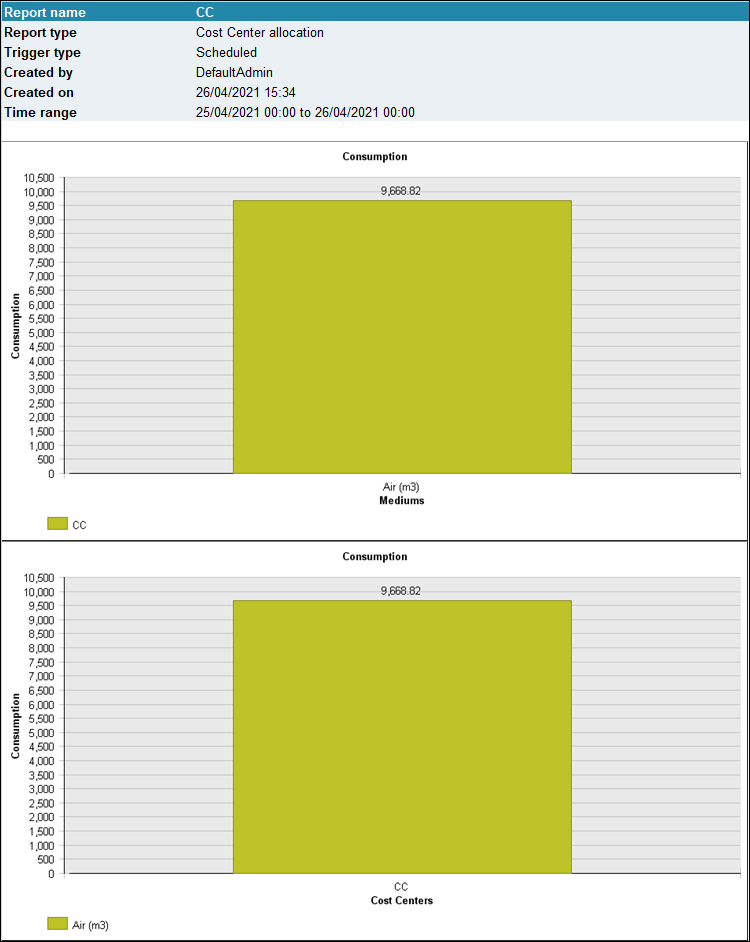

Cost Center Report

This report calculates the total energy consumption and costs for different mediums associated with each cost center. The report can be used for internal cost allocation.

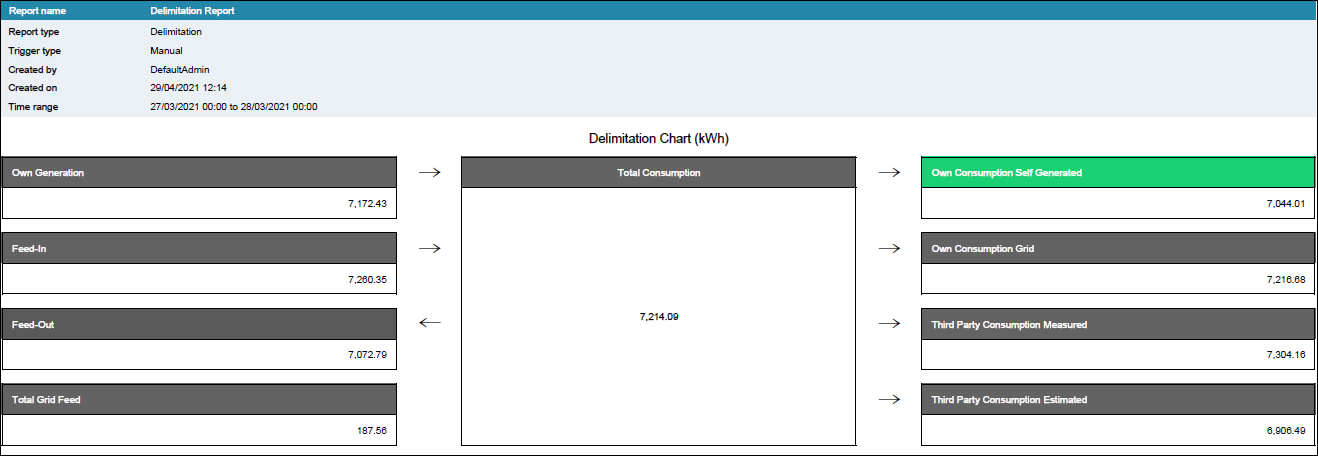

Delimitation Report

This report allows you to delimitate third-party current quantities with PAC2200CLP devices in adherence to German “EEG-Umlage”. The EEG surcharge serves to finance the expansion of renewable energies and is specified in the Renewable Energy Sources Act (EEG).

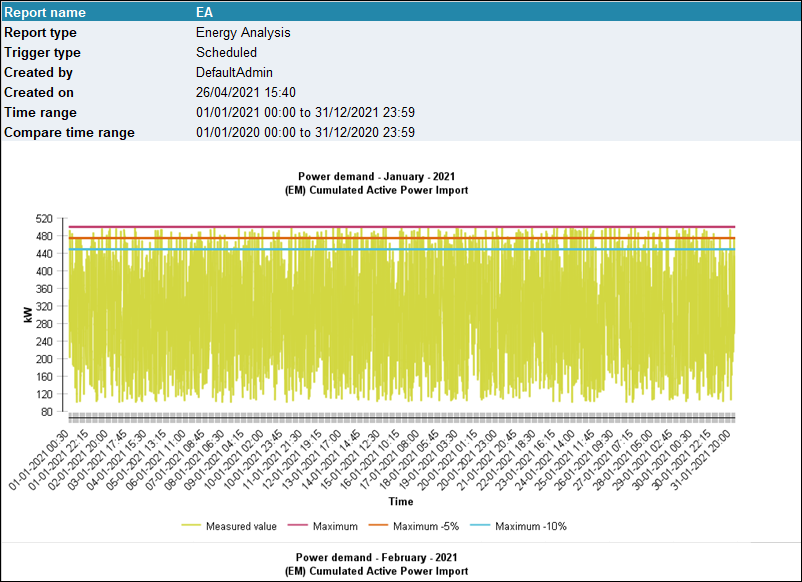

Energy Analysis Report

This report analyzes the energy consumption and the corresponding power demand value for a time period of one or two years. It gives an overview of the power demand curves for the year and each month. Only the completed month have charts and its data for the current year. Also, the report shows the energy consumption value of each month and the corresponding power demand peak value.

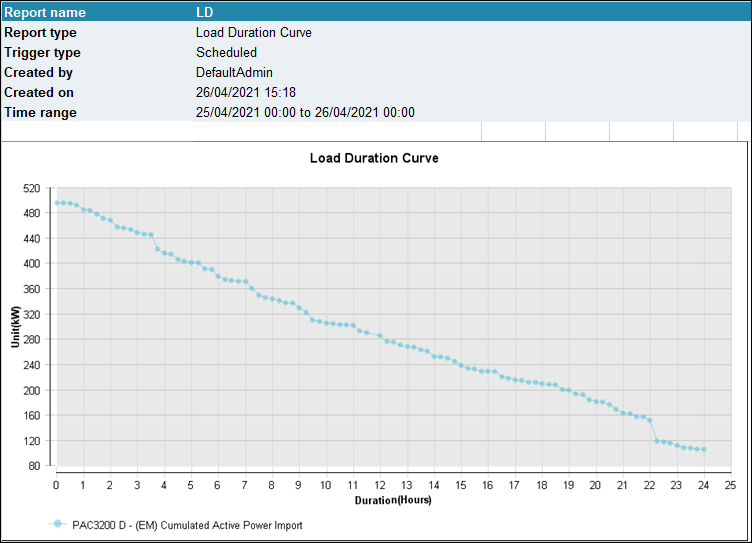

Load Duration Report

This report displays the power demand values and the duration of each power demand value used in the selected time period. It displays a detailed view of the 50 highest power demand values of the selected time interval and an analysis of these values over the day.

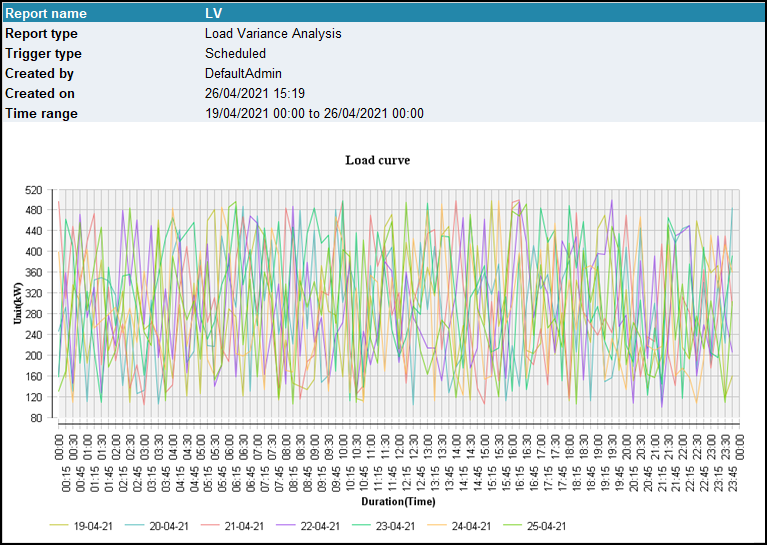

Load Variance Report

This report shows the power demand values for the selected time period and shows the range of the power demand values for each time. On this basis, it displays the variance of the load for a certain time period.

Power Peak Analysis Report

Powermanager contains a report generator for determining power peaks within a specified time range. You can evaluate the following values using the report generator:

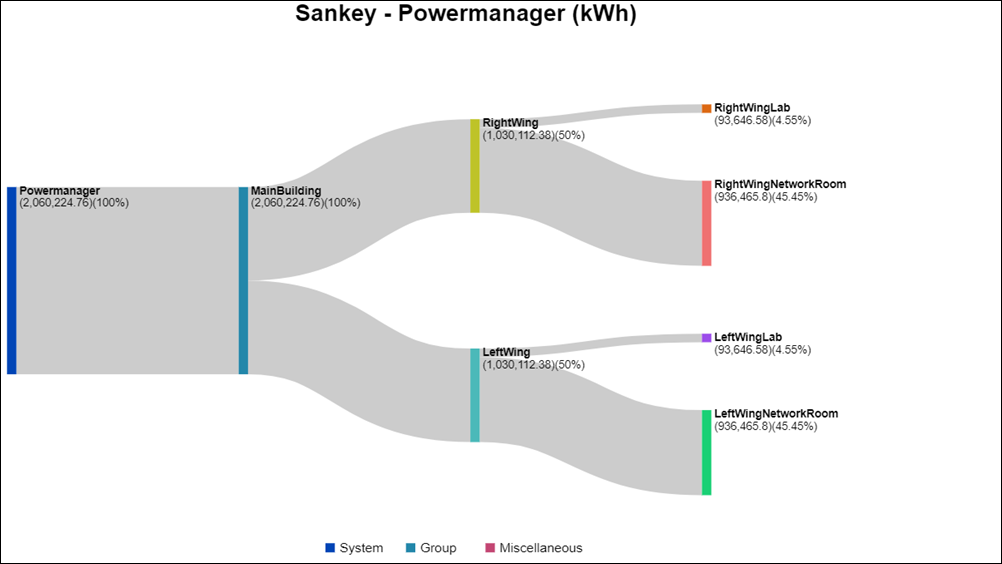

Sankey Report

This report gives an overview of the energy consumption in the form of a Sankey diagram.

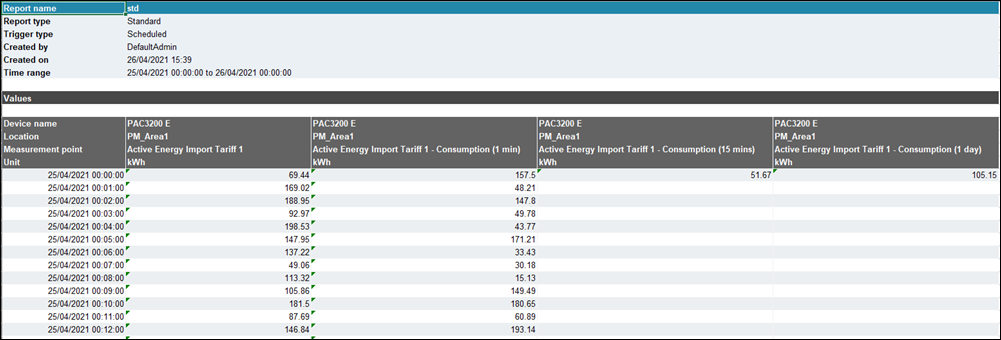

Standard Report

This report can be used for any powermanager measuring value that is archived. This report displays all the values of the selected data points for a selected time period in a table.

When a standard report is executed and exported to an Excel file (.xlsx format), measurement point values were previously treated as text, preventing users from performing further analysis or calculations in Excel. This issue is resolved, and the values are treated as numbers without a thousand separator.

For example, the measurement point values in the report have been modified as follows:
- In previous versions (before V9.0) : 12,399.58
- From V9.0 onwards: 12399.58
This change applies to all supported export formats.

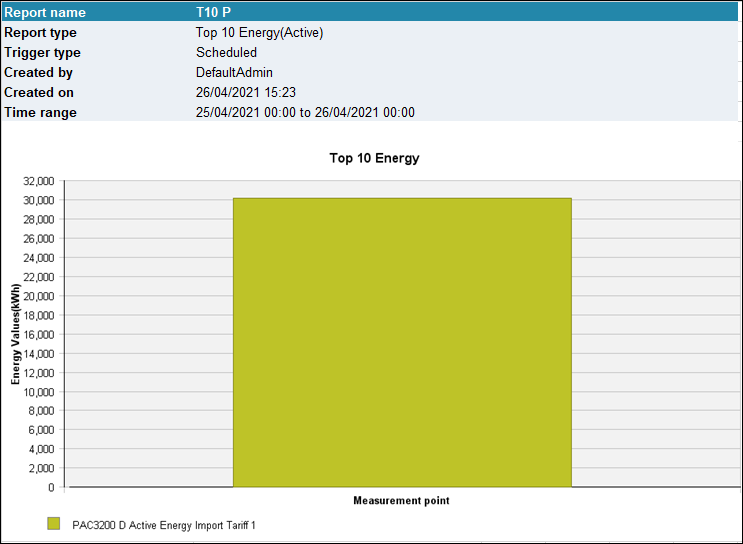

Top 10 Energy Report

The Top 10 energy report displays the details of the top 10 consumers of the active energy and reactive energy across the powermanager system.

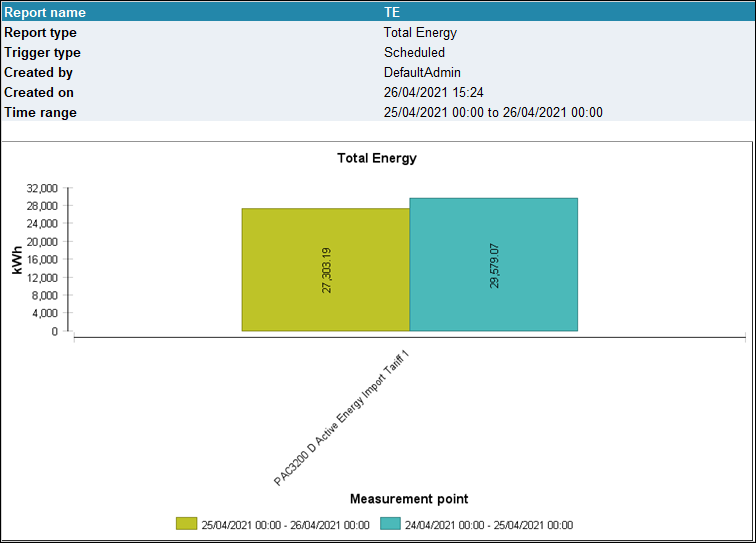

Total Energy Report

This report displays the total energy consumption of a selected data point for the selected time period. The data can be displayed as a bar chart or a pie chart.

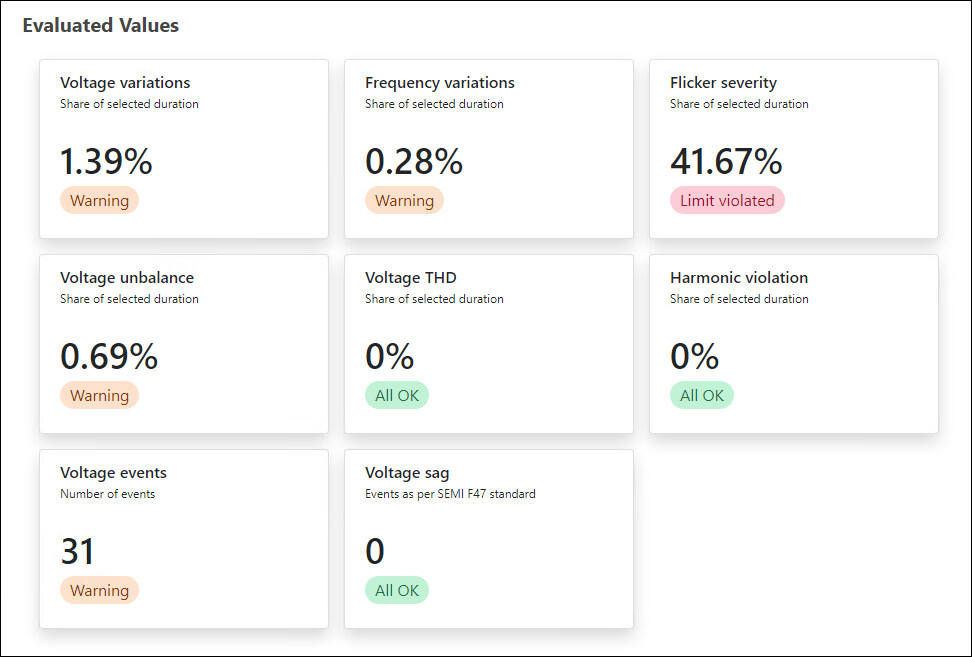

EN 50160 Report

This report displays the total power quality variations occurred over selected time period. The data can be displayed as same as flex client which is combination of timeline chart, donut chart, tables, ITI CBEMA, and SEMI F47 standard.
NOTE: PowerQuality license is required to view EN 50160 report.

IEEE 519 Report

This report displays the analysis of the harmonic compliance of the selected source in accordance with IEEE 519-2022 standard.

Summary Page: Displays the compliance status of the harmonics with the timestamps for the selected summary.

Detail Results Page: Displays the detailed compliance status for the voltage and current harmonic distortion limits.
For the failed harmonics, a note will be displayed at the end of the report with exact harmonic name, failure percentage detail from which failure occurs, and timestamp. For some cases, such as inoperative device and no data flow from the devices, the compliance status will be NA.
NOTE: IEEE 519-2022 standard reports can be generated for SICAM Q100 (Firmware version: V2.70) & Q200 (Firmware version: V2.82.5) devices.

Reference for Voltage distortion limits:

Reference for Current distortion limits:
