Configure the Delimitation Report

You have selected the Delimitation Report type for configuration.
The Report Definition configuration page displays.
In the Main expander, Report Type displays, Delimitation, the type of the report.

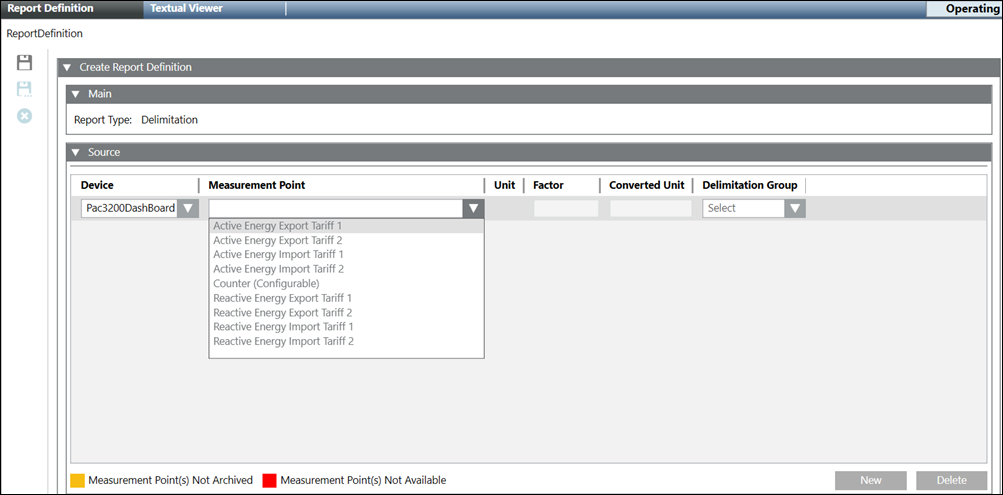

In the Source expander, drag-and-drop Powermanager [System] or [Area] or [Sector] or [Device] or click New to add a source and configure the following:
- Device: Allows you to select the device.
- Measurement Point: Allows you to select the required measurement point.
- Unit: Displays the unit.
- Factor: Displays the factor.
- Converted Unit: Display the converted unit.
- Delimitation Group: Allow you to select the delimitation group.
Click Save.

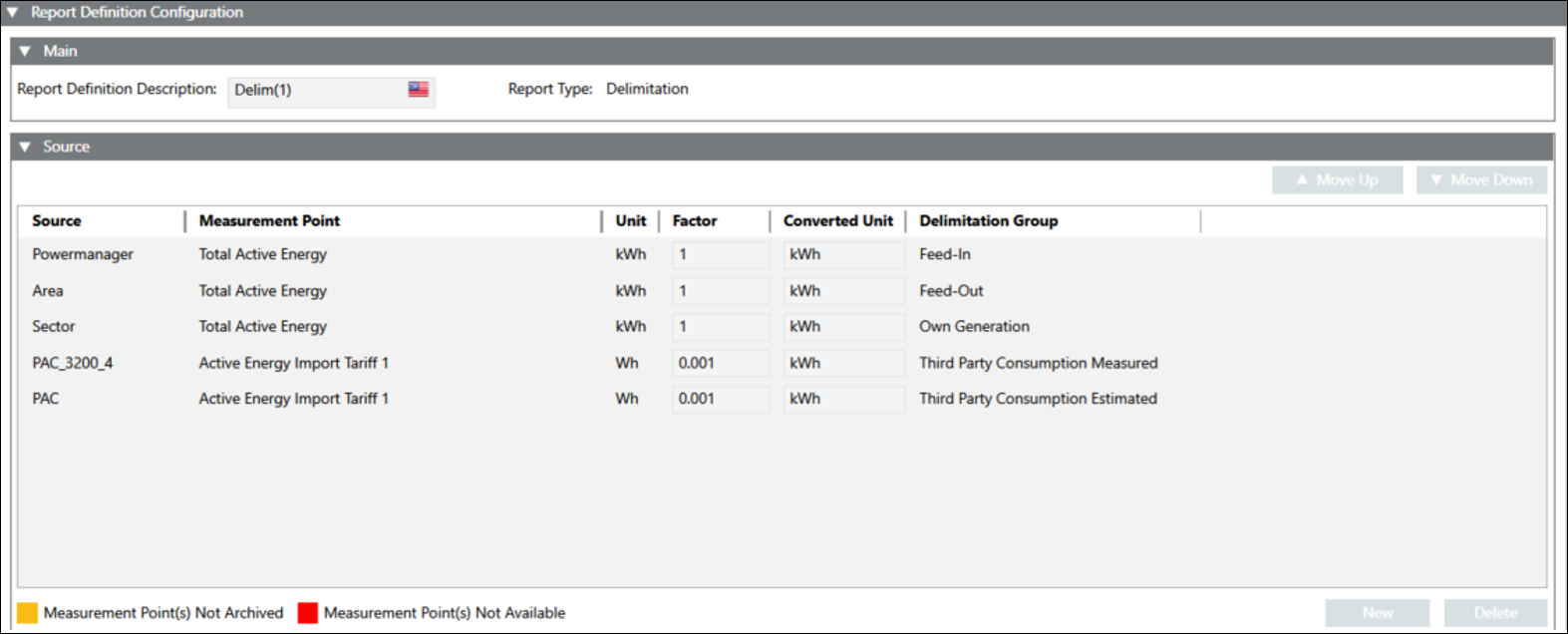

The following two combinations are available for configuration of Delimitation Reports:

Feed-In	Feed-Out	Total consumption	Own generation	Own consumption	Own consumption Self-generated	Own consumption grid	Third party consumption measured	Third party consumption estimated
Mandatory	Mandatory	Optional	Mandatory	Mandatory	Mandatory	Mandatory	Mandatory	Mandatory
Mandatory	Mandatory	Optional	Mandatory	Optional	Optional	Optional	Mandatory	Mandatory
