Configure the Load Duration Report

  1. You have selected the Load Duration report type for configuration.

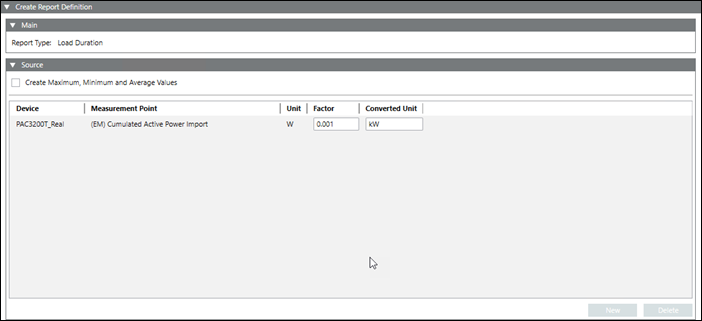

  2. The Report Definition configuration page displays.
  3. In the Source expander, select the Create Maximum, Minimum and Average Values check box.
  4. In the Source expander, drag-and-drop device or click New to add a device.
    NOTE: Skip step 4 and proceed directly to step 5 when adding the device using the drag-and-drop method.

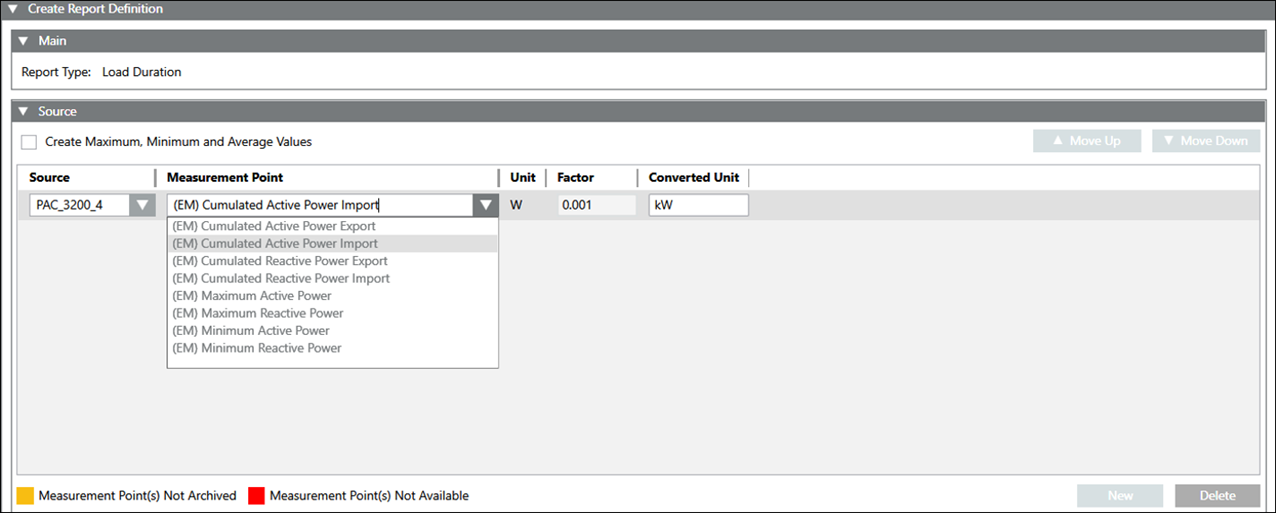

  5. Select a device from the Source drop-down list for which the report needs to be generated.
    NOTE: You can add only one device to the Load Duration report.
  6. Enter values into the values following columns:
    - Select the required measurement point for which the report needs to be generated from the drop-down list under the Measurement Point column.
    - Unit
    - Factor
    - Converted Unit
  7. info

    Load Duration reports are unavailable for devices without Power Period values. For the PAC1200 and SEM3 devices, Power Period values are not available, and the report cannot be generated. This applies at the Powermanager, Area, and Sector.

  8. Click Save .
    NOTE: If the selected measurement point is not archived, a warning message will be displayed. You can save the report definition with warning. However, if the measurement points are not archived, the generated reports will not have any values.
  9. The Save Object As dialog box displays.
  10. Enter a name and description and click OK.
  1. The Load Duration report definition is configured.
