Configure the Power Peak Report

  1. Select the Power Peak report type for configuration.
  2. The Report Definition configuration page displays.

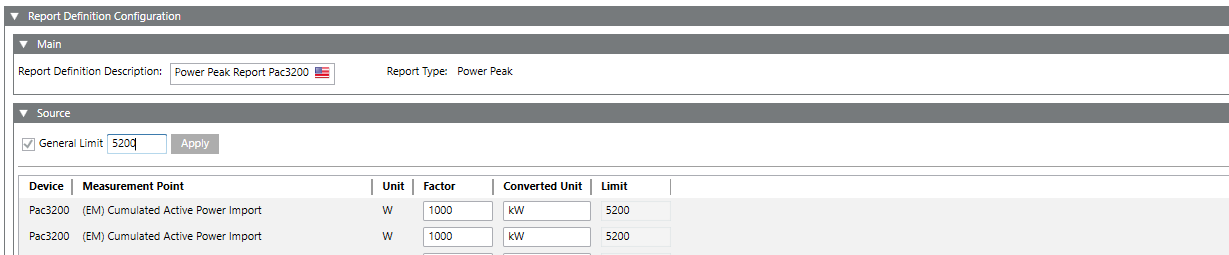

  3. In the Source expander, check the General Limit check box to apply a general threshold limit to all measurement points under the Measurement Point column.
  4. (Optional) If the General Limit check box is checked, enter the value of the limit to be applied in the text field and click Apply.
  5. The entered limit is applied to all the measurement points under the Measurement Point column.
  6. In the Source expander, drag-and-drop device or click New to add a device.
    NOTE: Skip step 5 and proceed directly to step 6 when adding the device using the drag-and-drop method.
  7. Select a device from the Source drop-down list for which the report needs to be generated.
    NOTE: You can configure multiple devices and generate a Power Peak report.
  8. Enter values into the following columns:

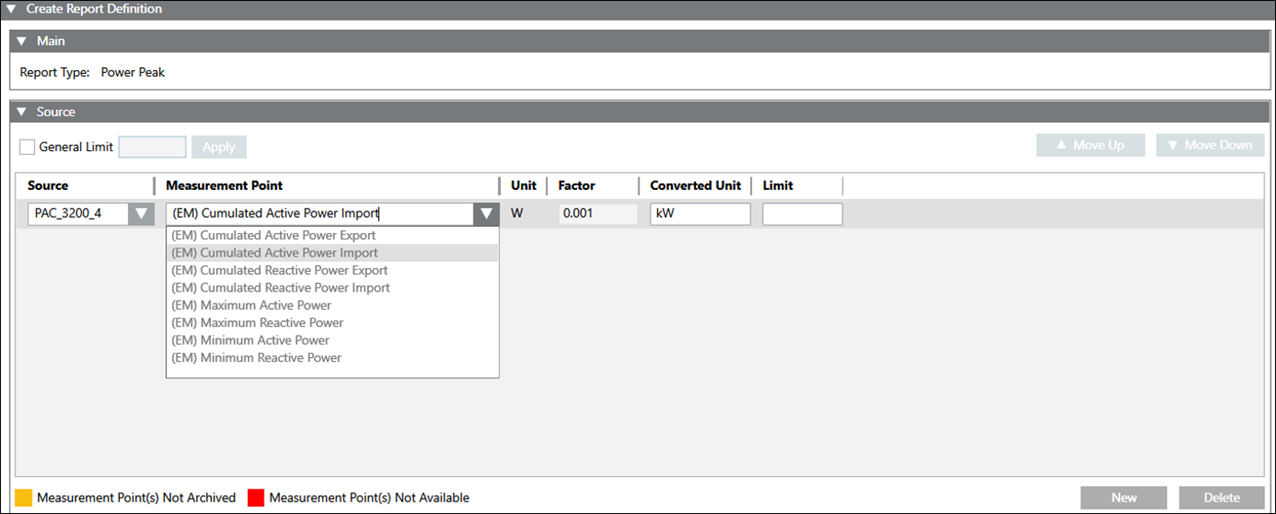

    - Select the required measurement point for which the report needs to be generated from the drop-down list under the Measurement Point column.
    - Unit
    - Factor
    - Converted Unit
    - Limit
  9. info

    Power Peak reports are unavailable for devices without Power Period values. For the PAC1200 and SEM3 devices, Power Period values are not available, and the report cannot be generated. This applies at the Powermanager, Area, and Sector.

  10. Click Save .
    NOTE: If the selected measurement point is not archived, a warning message will be displayed. You can save the report definition with warning. However, if the measurement points are not archived, the generated reports will not have any values.
  11. The Save Object As dialog box displays.
  12. Enter a name and description and click OK.
  1. The Power Peak report definition is configured.
