Virtual Device Configuration Workspace

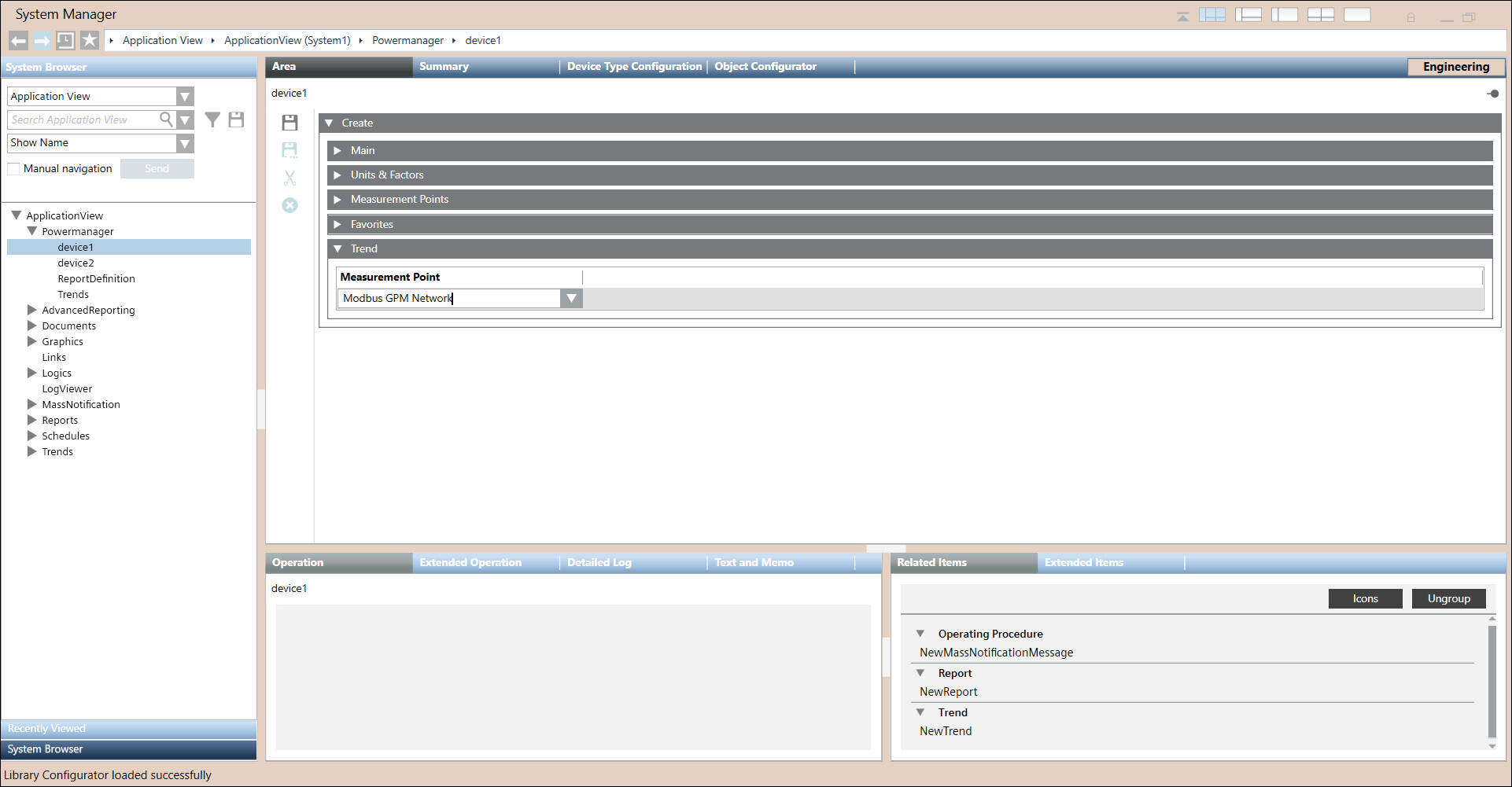

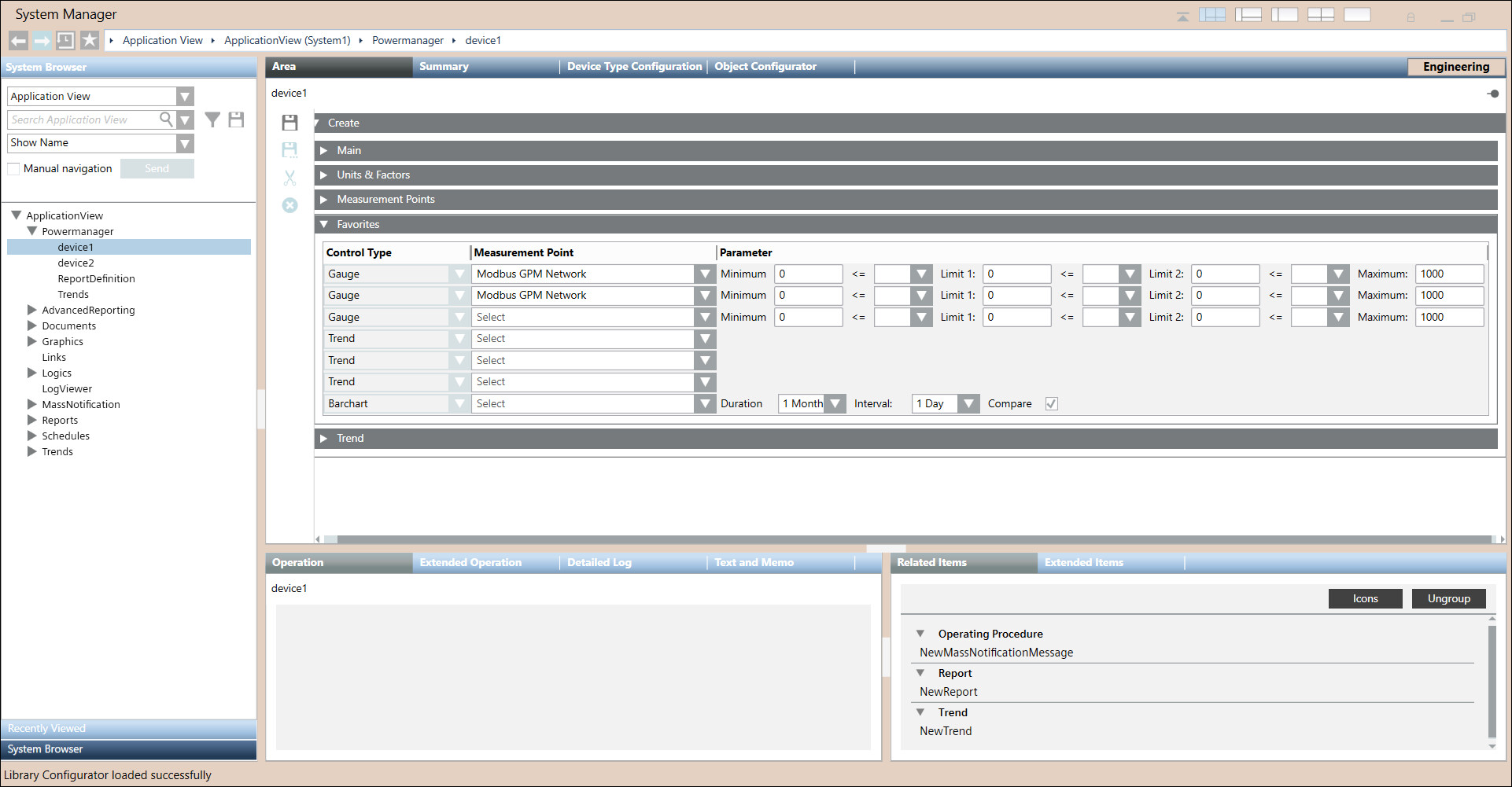

In Engineering mode, you can configure a device type or a device at the area or device level in the Area or Device tab.
Main Expander
Main expander allows you to configure Device Description, Device Type, and Use Area Settings.
Items | Description |
Device Description | Displays the device description. You can change the description and language as needed. |
Device Type | Displays the device type name. |
Use Area Settings | Allows you to set the area settings. |

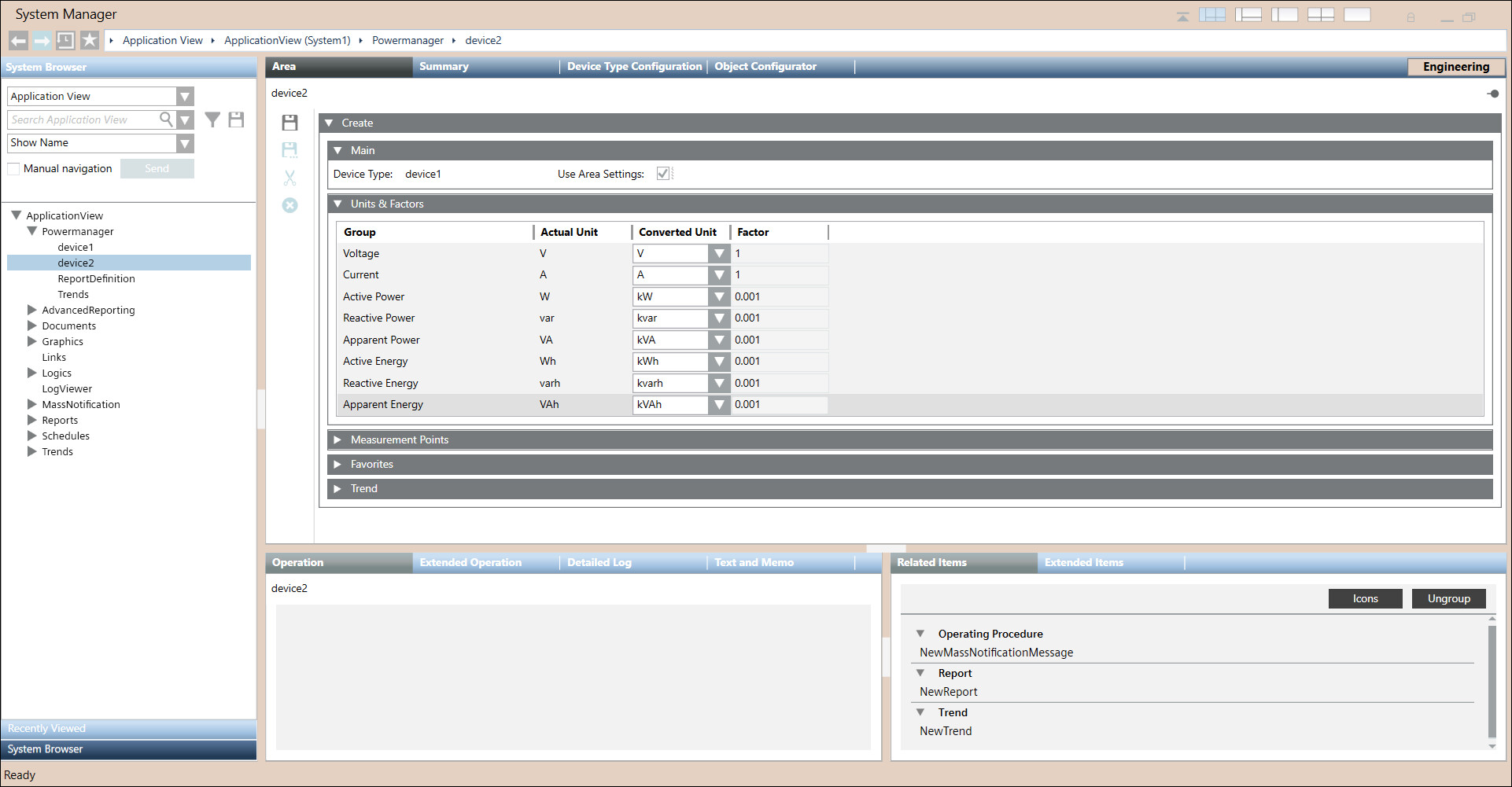

Units and Factors Expander
Units and Factors expander allows you to configure Converted Unit and Factor.
Items | Description |
Group | Displays the device parameters. |
Actual Unit | Displays the default unit of the parameter in the device. |
Converted Unit | Allows you select the desired unit. |
Factor | Displays conversion factor for unit conversion. |

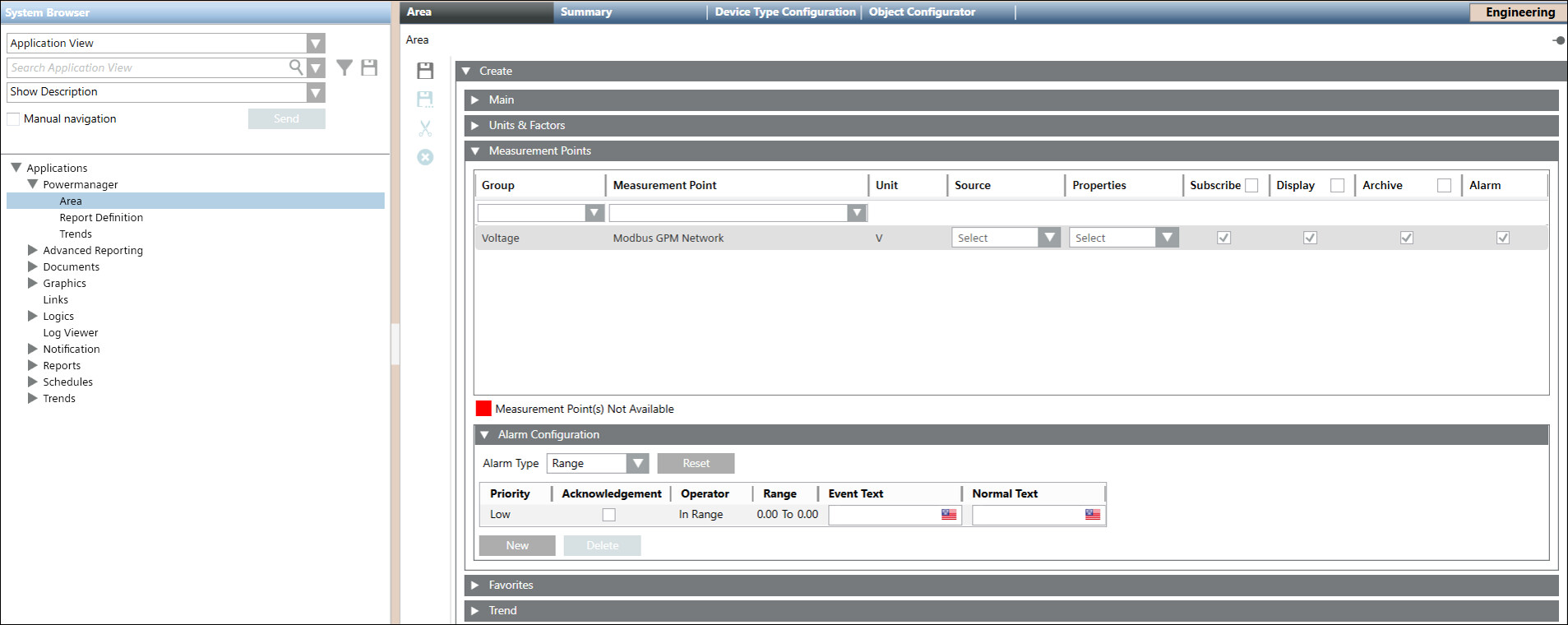

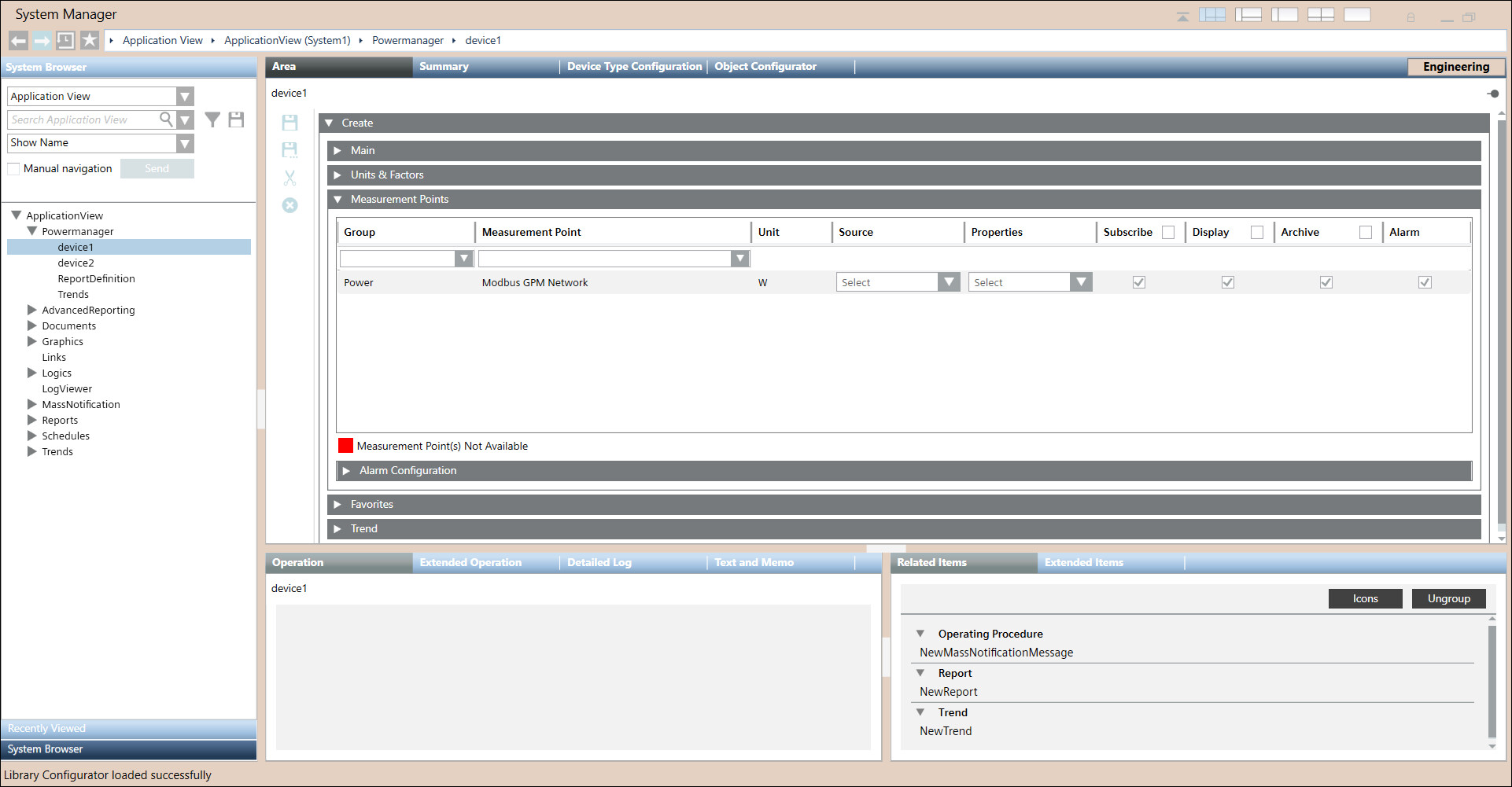

Measurement Points Expander
Allows you to configure the measurement point settings in the Powermanager system. It consists of the following columns:
Items | Description |
Group | Displays the category of the measurement point. You can select the measurement points category from the drop-down list. |
Measurement Point | Displays the name of the measurement point. You can select the measurement point from the drop-down list. |
Unit | Displays the unit of the measurement point. |
Source | You can select from drop down or drag and drop. |
Properties | You can select from drop-down list. |
Subscribe | By default checkbox is selected for the measurements points. |
Display | Allows you to select the checkbox for the measurement point to be displayed in the Measurement values tile in the Overview tab in Operating mode. |
Archive | Allows you to select the checkbox for the measurement points for which data has to be archived. |
Archive Group | Allows you to select archive group for the single or multiple measurement points when creating a device instance or after device creation. |
Filter Group | Allows you to apply filters for the measurement points selected to archive. |
Alarm | Allows you to select the checkbox to enable alarms for the corresponding measurement points. |
Alarm Configuration Expander
To configure a workstation alarm for a point.
Items | Description |
Alarm type | The alarm type to be enabled for an event. |
Reset | Allows you to rest all alarm conditions from the table and reset the default alarm class. |
For Limit Priority Operator
| User defined values Low, Medium, High and Fault :> : Greater than , >= : Greater than or equal to , < : Less than, <= : Less than or equal to |
Acknowledgment | Select the checkbox |
For Range | The value, or range of values, for which an alarm is to be issued. Low, Medium, High and Fault In range, !.. : Not in range , || : OR, !|| : NOR |
Event text | The text to display when the alarm is issued. |
Normal text | The text to display when the alarm ceases. |
New | Allows to add new rows with default alarm class and values. |
Delete | Allows you to delete the selected alarm row. |
