Configure the IEEE 519 Report

  1. To configure IEEE 519 Report, ensure you have added IEC 61850, and PQ Advisor extension modules to project.
  2. You have a valid IEC 61850, and Power Quality license, and activated it.
  3. You have integrated at least one IEC 61850 device, refer Integrating the IEC 61850 Devices.
  4. You have the latest Firmware version: V2.70 or above in SICAM Q100 device and V2.82.5 or above in SICAM Q200 device.
  5. You have enabled the JSON option in the IEEE 519 report configuration device web page for the SICAM Q100/Q200 device.
  1. You have selected the IEEE 519 report type for configuration.

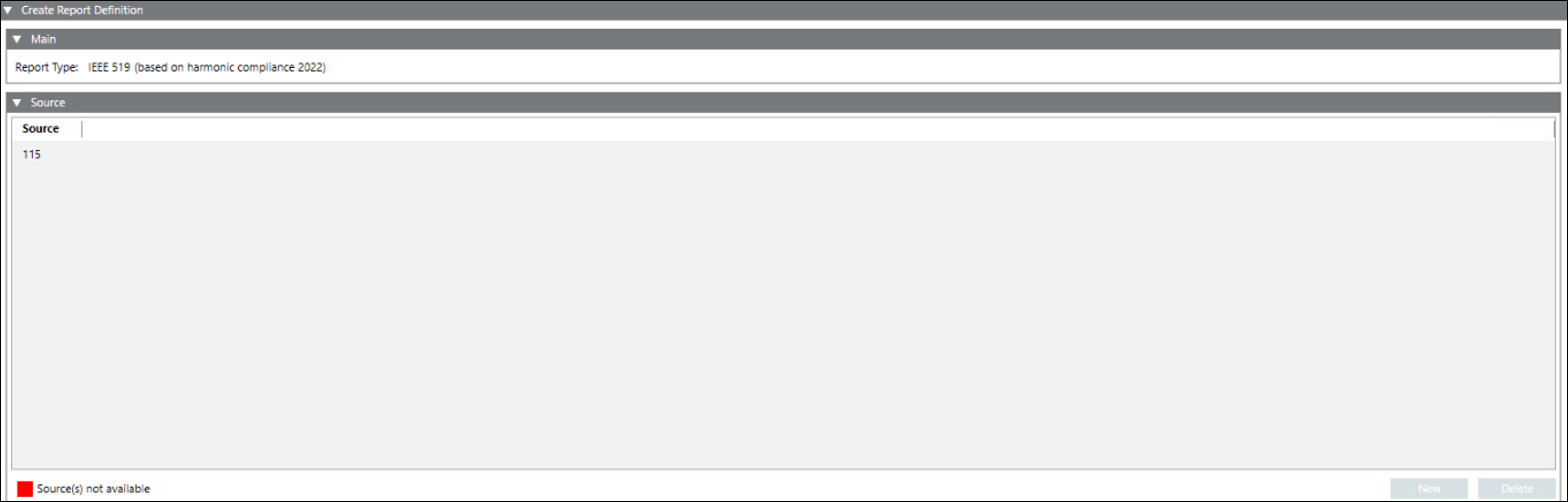

  2. The Report Definition configuration page displays.
  3. In the Source expander, drag-and-drop device or click New and select device from the drop-down to add a device for which the report needs to be generated.
    NOTE 1: Only Power Quality devices with IEC61850 protocol are available for EN 50160 report.
    NOTE 2: You can configure only one Power Quality devices in one IEEE 519 report.
  4. Click Save .
  5. The Save Object As dialog box displays.
  6. Enter a name and description and click OK.
  1. The IEEE 519 report definition is configured.
info

It is recommended to schedule the report approximately 3 to 4 hours after midnight (12:00 AM) on Monday for background processing in Powermanager. During this period, the system may perform internal computations. If you schedule multiple reports, the total processing time increases accordingly.
